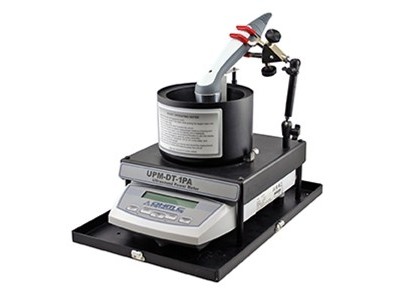

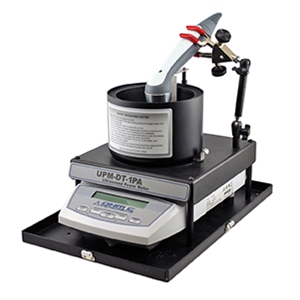

美国Ohmic UPM-DT-1PA超声功率计

美国Ohmic UPM-DT-1PA超声功率计，2毫瓦分辨率
OHMIC仪器型号UPM-DT-1PA和10PA是精密的瓦特表，用于测量诊断和治疗超声波传感器的功率输出。UPM-DT系列自1986年以来一直在全球范围内使用，并符合FDA，JCAHO，AAMI和AIUM推荐的测试指南。功率通过辐射方法测量，UPM-DT的精度可溯源至NIST。

UPM-DT-1PA超声功率计的特点：

•五级认证（NIST可溯源）
•高分辨率：  2或20毫瓦（1.5或15毫瓦克模式）
• 测量范围：0-30瓦
• 频率范围：.5-10兆赫
•测量全部脉冲或连续功率
•自动调零和稳定
•数字显示和RS-232接口
•配有便携箱

UPM-DT-1PA超声功率计包括的以下附件：
金属外壳 - 黑色
通用电源
1克校准重量
NIST可溯源校准证书
用户手册








OHMIC Instruments Models UPM-DT-1PA & 10PA are precision wattmeters designed to measure the power output of diagnostic and therapeutic ultrasound transducers. The UPM-DT series  have been in use worldwide since 1986 and conform to the testing guidelines recommended by FDA, JCAHO, AAMI and AIUM. Power is  measured by the radiation methodand the accuracy of the UPM-DT’s are traceable to NIST.

Features for the UPM-DT-1PA:

• Five point certification (NIST Traceable)
• High resolution: 2 OR 20mW (1.5 or 15 mW in grams mode)
• Measurement range: 0-30 watts
• Frequency range: .5-10 mhz
• Measures total pulsed or continuous power
• Automatic zeroing and stabilization
• Digital display and RS-232 interface
• Equipped with carrying case
