Ohmic UPM-30超声功率计

Ohmic UPM-30超声功率计，150 mW分辨率详细介绍：

美国Ohmic UPM-30超声功率计，150 mW分辨率

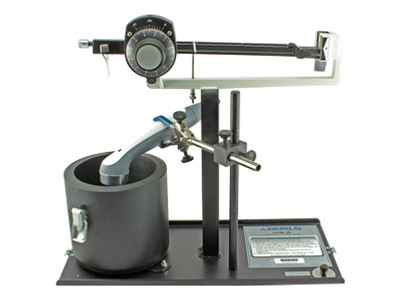

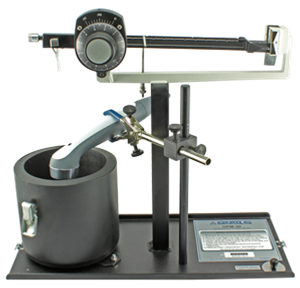

UPM-30超声功率计设计用于使用辐射力平衡方法测量高达30瓦的诊断或治疗传感器的超声功率输出。UPM-30由0.01至10.00克的精密机械秤，悬挂在吊架上的圆锥形目标，水箱，带夹子的换能器支撑杆和手提箱组成。要测试的传感器安装在圆锥形靶上，传感器的辐射面朝下浸入水介质中。
UPM-30型通过测量换能器对锥形目标的辐射力来确定超声波的平均功率。该目标与用于测量由于超声辐射引起的克机械力的精密机械平衡耦合。当乘以14.65的常数时，克力与超声功率成正比，单位为瓦; 因此，2.05克力将等于30瓦的超声辐射。
UPM-30装置的核心是充气圆锥形靶。通过使用自身的浮力，该目标的重量被降至最低。超声波能量从目标机械地转移到测量的精确平衡点。反射超声能量被水箱内的闭孔丁基橡胶壁吸收。该系统提供了一个坚固的仪器，具有良好的测量精度和经济的成本。



UPM-30超声功率计标配包括以下附件：
金属外壳 - 黑色
1克校准重量
NIST可溯源校准证书
用户手册


Ohmic’s Ultrasound Power Meter, Model UPM-30, is designed to measure the ultrasonic power output of diagnostic or therapeutic transducers up to 30 watts using the radiation force balance method. The UPM-30 consists of a precision mechanical balance which measures from 0.01 to 10.00 grams, a conical target suspended on a hanger, a water tank, a transducer support rod with clamp, and a carrying case. The transducer to be tested is center mounted over the conical target with the transducer’s radiating area immersed face down in the water medium.
Model UPM-30 determines the average ultrasonic power by measuring the radiant force exerted by the transducer on the conical target. This target is coupled to the precision mechanical balance which is used to measure the gram-mechanical force due to the ultrasonic radiation. The gram force is directly proportional to the ultrasound power in watts when multiplied by a constant of 14.65; therefore, a 2.05 gram force would be equal to 30 watts of ultrasound radiation.
The heart of the UPM-30 unit is its air-filled conical target. The weight of this target is nulled to a minimum by using its own buoyancy. Ultrasound energy is mechanically transferred from the target to the precision balance where it is measured. Reflected ultrasound energy is absorbed by closed-cell butyl rubber walls inside the water test tank. This system provides a sturdy instrument with good measurement accuracy and economical cost.
