AED G3 Automatic除颤仪

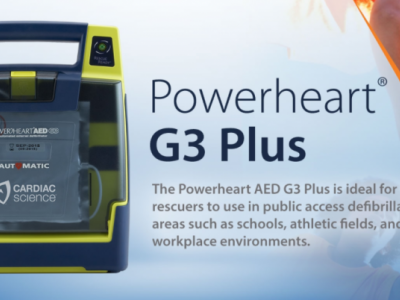

美国心科Powerheart AED G3 Automatic除颤仪

美国心科Powerheart AED G3 Automatic除颤仪主要特点：
1.全自动监护除颤，全过程无需人为介入，自动检测分析并除颤
2.RescueReady自检及监控技术
3.STAR双相波技术
4.自动选择能量
5.中文语音提示
6.便携式,易于现场急救
7.免充电锂电池,四年保证
8.整机保修7年




DEFIBRILLATOR
Operations 9390A (fully automatic version)
Waveform: STAR® biphasic truncated exponential
Energy (J) range available: Escalating variable energy (VE) 95J to 351J
Protocols: 5 energy protocols available
Factory default (nominal): 200VE, 300VE, 300VE
Voice prompts: RescueCoach voice instructions guide user confidently through rescue process
Text screen: Displays rescue prompts to guide user through rescue process as well as additional critical rescue information for EMS responders
Visible indicators: Rescue Ready status indicator, SmartGauge battery status indicator, service indicator, PAD indicator, text display
Audible alerts: Voice prompt, system alert
Synchronized shock: Built-in automatic synchronization feature
Pacemaker pulse detection: Yes
Programmable: Yes, via MDlink®
Pediatric capability: Yes
Warranty: 7 years
CPR cadence: Metronome for compression frequency
PADS
Minimum combined surface area: 228 cm (35.3 sq in)
Extended length of lead wire: 1.3 m (4.3 ft)
Supplied: Self-checking, pre-connected to the AED
Type: Adult, pre-gelled, self-adhesive, disposable, non-polarized (identical pads can be placed in either position) defibrillation pads
Shelf life: 2 years
BATTERY
Type: IntelliSense® lithium battery
Warranty: 4-year, full operational replacement
AUTOMATIC SELF-TESTS
Daily: Battery, pads (presence and function), internal electronics, SHOCK/ConTINUE button, and software
Weekly: Battery, pads (presence and function), internal electronics, partial energy charge, SHOCK/ConTINUE button, and software
Monthly: Battery, pads (presence and function), internal electronics, full energy charge cycle, SHOCK/ConTINUE button, and software
EVENT documentATION
Type: Internal memory
Internal memory: 60 minutes ECG data with event annotation, multiple rescue functionality
ECG playback: Viewable via Rescuelink® software via PC
Communications: Serial port or USB (via adapter) for PC with Windows
Clock synchronization: Rescue event time stamp of event data
DIMENSIONS (H X D X W)
DIMENSIONS (H x D x W): 8 cm x 31 cm x 27 cm (3.3 in x 12.4 in x 10.6 in)
WEIGHT
WEIGHT: 3.1 kg (6.6 lb)
MODEL NUMBER
9390A-1001: Powerheart AED G3 Plus Automatic with 2010 AHA/ERC Guidelines protocols
Powerheart AED G3 Plus Automatic. Each AED package includes (1) defibrillator, (1) IntelliSense battery (9146), (1) pair of defibrillation pads, and (1) Quick Start Tool Kit including CD-Rom with AED Manual, Training Video, Rescuelink and MDlink, and serial communication cable
