UPM-DT-1000PA超声功率计

美国Ohmic UPM-DT-1000PA超声功率计详细介绍：

美国Ohmic UPM-DT-1000PA超声功率计

OHMIC仪器最新型号UPM-DT-1000PA可提供任何目前UPM-DT的最快响应（3秒以下）和最高分辨率（0.001瓦）。UPM-DT系列自1986年以来一直在全球范围内使用，并符合FDA，JCAHO，AAMI和AIUM推荐的测试指南。功率是通过辐射力平衡法测量的。UPM-DT的准确性可以追溯到NIST。

UPM-DT-1000PA超声功率计的特点：

•最快响应时间=少于3秒
•最高分辨率：  1mW或0.1mg克模式
•五点认证（NIST可溯源）
•测量范围：0-30WATTS
•频率范围：  。 5TO 10MHZ
•测量总脉冲或连续功率
•自动归零和稳定
•数字显示和RS-232接口

UPM-DT-1000PA超声功率计包括的以下附件：
金属外壳 - 黑色
通用电源
1克校准重量
NIST可溯源校准证书
用户手册

OHMIC Instruments Newest Model UPM-DT-1000PA provides the fastest response (under 3 seconds) and the highest resolution (0.001 watts) of any current UPM-DT. The UPM-DT series have been in use worldwide since 1986 and conform to the testing guidelines recommended by FDA, JCAHO, AAMI and AIUM. Power is measured by the radiation force balance method. The accuracy of the UPM-DT’s are traceable to NIST.

Features for the UPM-DT-1000PA:

• Fastest response time= less than 3 seconds
• Highest Resolution: 1mW OR .1 mg in grams mode
• Five point certification (NIST Traceable)
• Measurement Range: 0-30WATTS
• Frequency Range: .5TO 10MHZ
• Measures total pulsed or continuous power
• Automatic zeroing and stabilization
• Digital display and RS-232 Interface

SAG: UPM-DT-1000PA,UPM-DT-1000PA超声功率计,美国Ohmic,超声功率计,美国Ohmic超声功率计

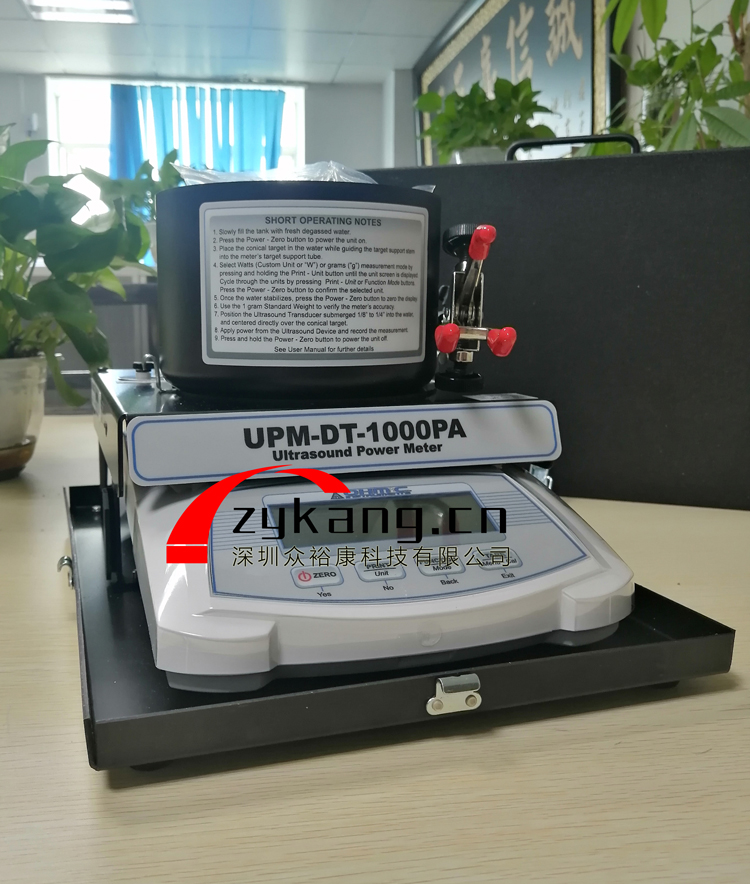

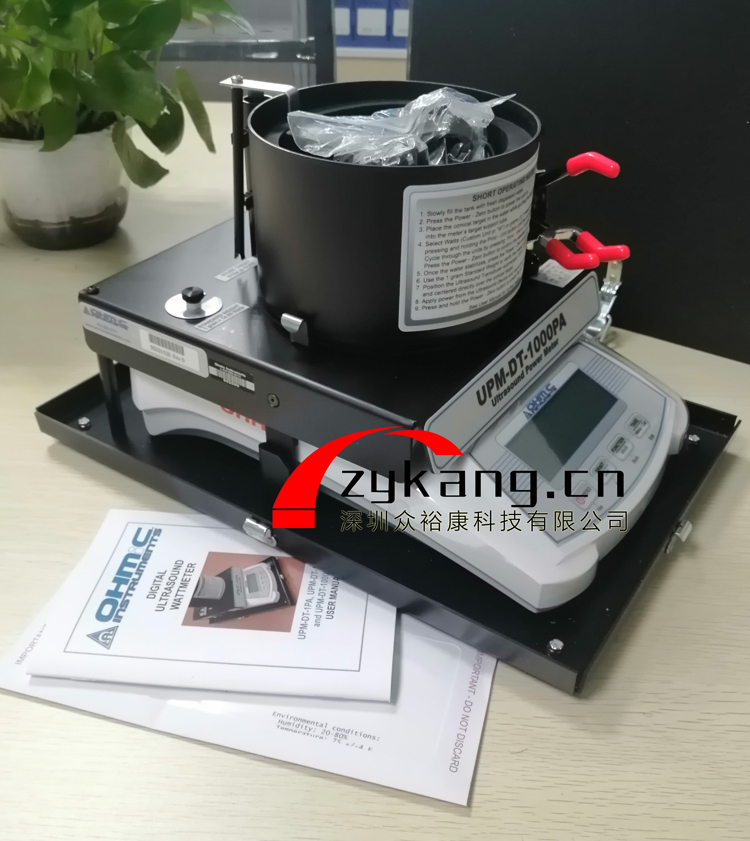

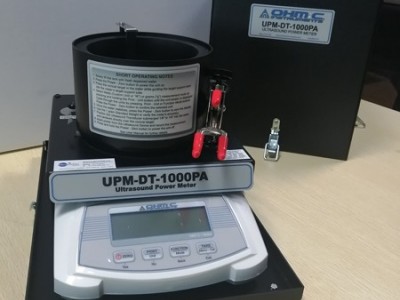

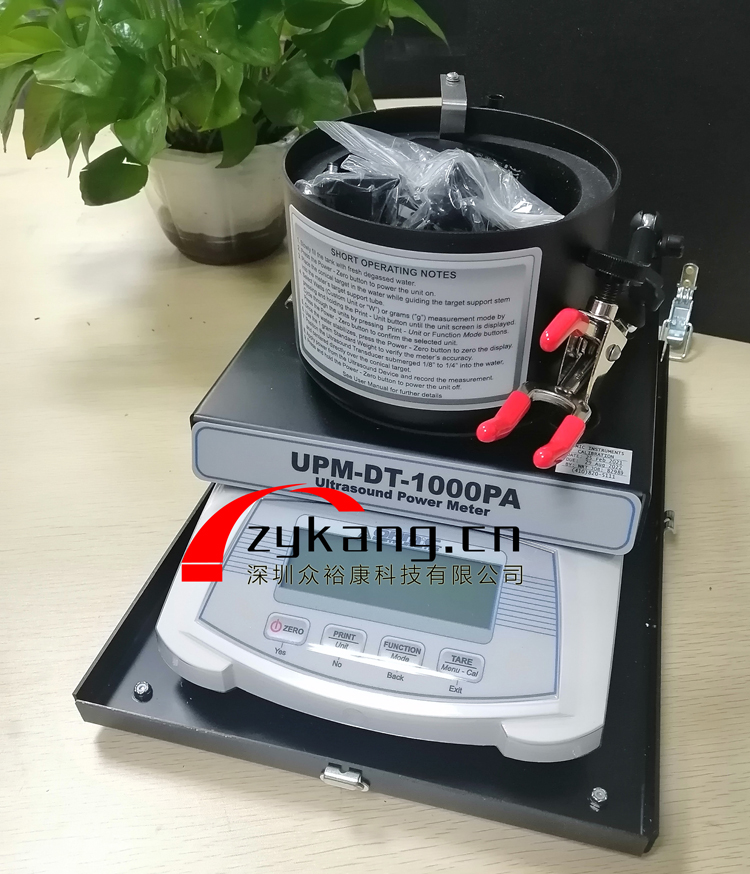

  美国Ohmic UPM-DT-1000PA超声功率计实拍图：
