Cirs DR QC模体,Cirs 139702 DR质控模体详细介绍：
Cirs DR QC模体,Cirs 139702 DR质控模体允许对DR检测器和相关软件进行全面的质量保证测试。
Cirs DR QC模体,Cirs 139702 DR质控模体可对月度和半年度评估进行七次质量保证评估，包括曝光线性和灵敏度，高对比度和低对比度再现性，伪像和残留图像检测，图像分辨率，准直器光束对准，测量工具精度和显示抖动QA测试。
Cirs 139702 DR QC模体，Cirs 139702 DR质控模体尺寸为17“x 17”x 0.5“，可以快速检查14”x 17“或17”x 17“DR系统。铅含量已经最小化，符合欧洲法规。
Cirs 139702 DR QC模体，Cirs 139702 DR质控模体带有标准的建议测试参数，QC报告表，软携带箱和48个月保修。
Cirs 139702 DR QC模体，Cirs 139702 DR质控模体特征：
允许测试14“x17”（35 x 43 cm）和17“x17”（35 x 35 cm）DR系统
包括七个质量保证测试的测试对象
符合德国标准DIN 6868-58和DIN 6868-13
包含DIN Type 23 Linepair目标
最大限度地减少铅含量以符合欧洲法规
没有活动部件
提供测试参数和QC报告表
延长12个月的保修期
| 建议的测试频率 | |
每月测试
|
半年度测试测试
|
| Cirs139702 DR QC模体，Cirs 139702 DR质控模体产品规格 | |
| 外形尺寸 | 17“x 17”x~1 / 2“ |
| 重量 | 8磅 |
| 物料 | PMMA，铜，铝 |
| 型号139701包括 | |
| QTY | 组件说明 |
| 1 | DR QC Phantom |
| 1 | 带衬垫的软包 |
| 1 | 用户指南 |
| - | 12个月保修 |

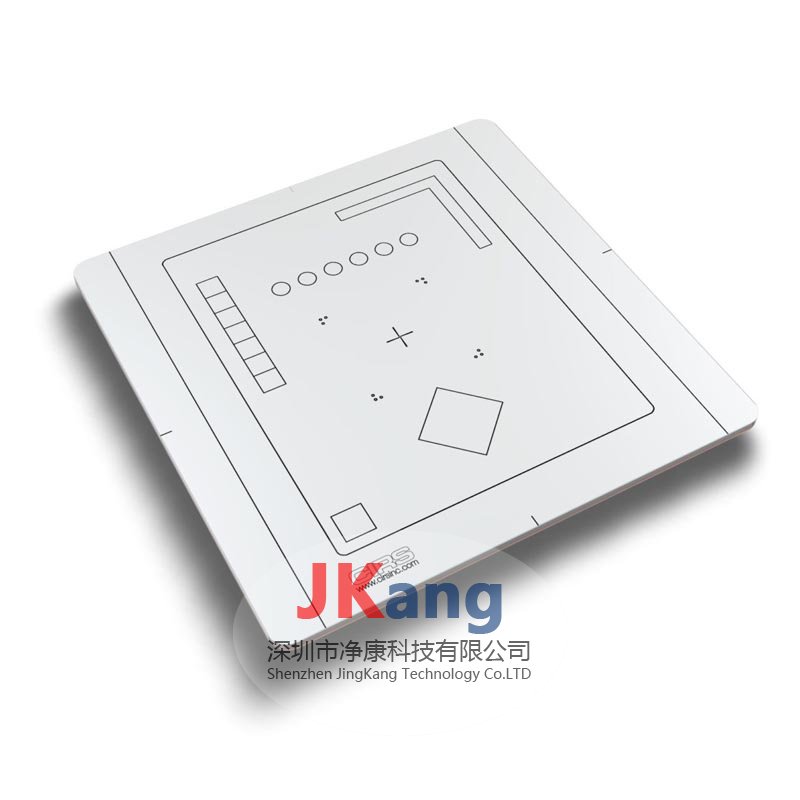

The CIRS DR QC Phantom allows comprehensive quality assurance testing for DR Detectors and associated software.
The phantom enables seven quality assurance assessments for monthly and
semi-annual evaluation, including exposure linearity and sensitivity,
high and low contrast reproducibility, artifact and residual image
detection, image resolution, collimator beam alignment, measurement tool
accuracy, and display jitter QA testing.
The CIRS DR QC Phantom measures 17" x 17" x 0.5" and allows for quick
checks on 14" x 17" or 17" x 17" DR systems. Lead content has been
minimized to meet European regulations.
The phantom comes with standard suggested testing parameters, QC report forms, soft carry case and 48-month warranty.
Features
Allows testing of 14"x17" (35 x 43 cm) and 17"x17" (35 x 35 cm) DR systems
Includes test objects for seven quality assurance tests
Complies with German standards DIN 6868-58 and DIN 6868-13
Contains DIN Type 23 Linepair target
Minimized lead content to meet European regulations
No moving parts
Testing parameters and QC Report forms provided
Extended 48-month warranty
