Ohmic UPM-DT-10PA超声功率计，20 mW分辨率详细介绍：
美国Ohmic UPM-DT-10PA超声功率计，20 mW分辨率
OHMIC仪器型号UPM-DT-1PA和UPM-DT-10PA超声功率计是精密的瓦特表，用于测量诊断和治疗超声波传感器的功率输出。UPM-DT系列自1986年以来一直在全球范围内使用，并符合FDA，JCAHO，AAMI和AIUM推荐的测试指南。功率通过辐射方法测量，UPM-DT的精度可溯源至NIST。
UPM-DT-10PA超声功率计的特点：
•五点认证（NIST 可追踪）
•高分辨率： 2或20 mW（以克模式为1.5或15 mW）
•测量范围：0-30瓦
•频率范围： .5至10 mhz
•测量全部脉冲或连续功率
•自动归零和稳定
•数字显示和RS-232接口
•配有便携箱

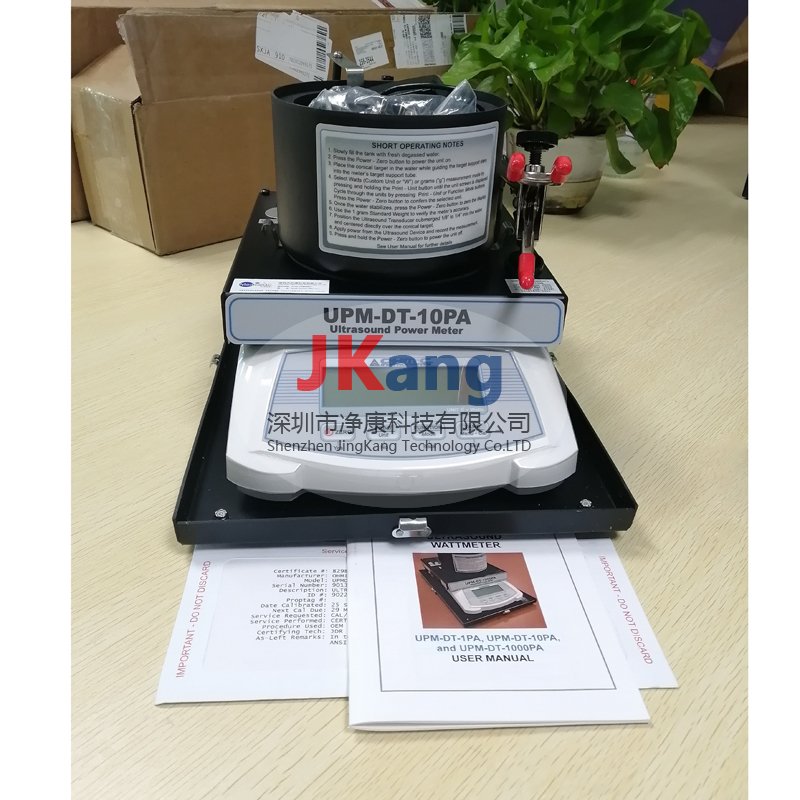

UPM-DT-10PA超声功率计包括的以下附件：
金属外壳 - 黑色
通用电源
1克校准重量
NIST可溯源校准证书
用户手册
OHMIC Instruments Models UPM-DT-1PA & 10PA are precision wattmeters
designed to measure the power output of diagnostic and therapeutic
ultrasound transducers. The UPM-DT series have been in use worldwide
since 1986 and conform to the testing guidelines recommended by FDA,
JCAHO, AAMI and AIUM. Power is measured by the radiation methodand the
accuracy of the UPM-DT’s are traceable to NIST.
Features for the UPM-DT-10PA:
• Five point certification (NIST Traceable)
• High resolution: 2 or 20 mW (1.5 or 15 mW in grams mode)
• Measurement range: 0-30 watts
• Frequency range: .5 TO 10 mhz
• Measures total pulsed or continuous power
• Automatic zeroing and stabilization
• Digital display and RS-232 interface
• Equipped with carrying case
